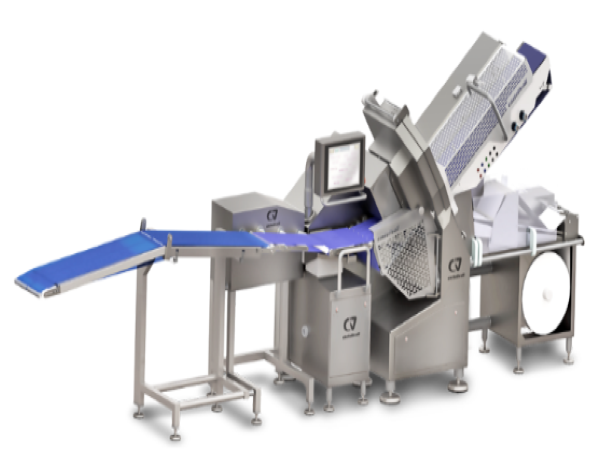

Slicer Filet-615

• Heavy duty construction made of AISI-304 stainless steel.
• Machine made according to the European Directive 2006/42/CE.
• The CASTELLVALL slicer is ideal for cutting and stacking cured, cooked and raw meats as well as cheese and vegetables
• 150 mm output conveyor and 500mm length separator conveyor with automatic 70mmvertical tiling.
• The product to be cut is attached to a gripper carriage with automatic handling, pneumatic.
• Vertical and lateral pneumatic pusher-plates with pressure adjustable from the control panel.
• Product presentation: stepped, stacked, stepped-stack, individual slices, “shaved-meat”, oval shapes, one row beside another, different programmable figures, etc. The number of slices in each group may be varied according to requirements, as well as the length of the portions and the separation between portions.
• Cutting system, both circular and orbital rotation, with independent motors and independent speed control through the control panel. The cutting settings are managed throughout touch screen.
• Easy adjustment of all settings using the touch sensitive screen of 10”.
• Continuous portion evaluation and complete.



Technical details

	FILET-615
Air Pressure	6 bar
Weight	From 600 to 1300 k
Slice Thickness	From 0,5 to 100 mm
Production	400 slices/min
Power	From 6 to 11 kW
Dimensions (depends on its configuration)	5071-5729 x 1146 x 1928 mm
