เครื่องผสม ยี่ห้อ Castellvall รุ่น AVT150

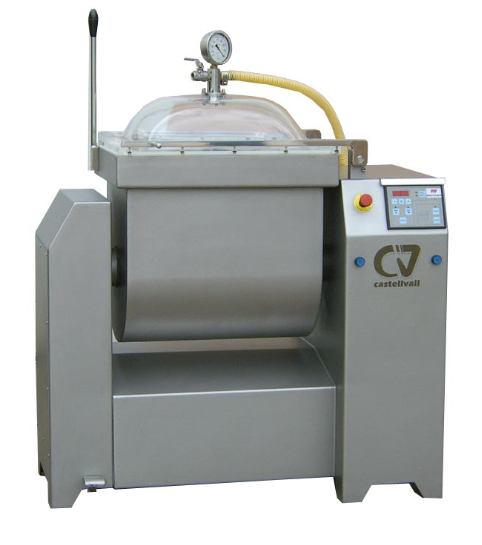

KNEADER MIXER AVT 150

  • Robust construction made of stainless steel AISI-304.
  • Machine constructed according to the European Directive 2006/42/CE.
  • Central “T” paddle with forward and reverse rotation, ideal for kneading all kind of products and blend perfectly the ingredients.
  • Suitable for massage by removing the breaker-arms of the container.
  • Geared motor transmission.
  • Pedal system to block the container while working, unloading and cleaning positions.
  • Suitable for processing until 70% of its capacity in litres (depending on the kind of product).
  • Silent operation and almost no maintenance required.

Option

  • Mechanical speed control
  • Electronic speed control
  • Platform to unloading to 100L cutter carts
  • Cryogenic mechanism (cold incorporation)



Technical details



AVT-150

Dimensions (AxBxH) (mm)

1260x815x1582

Shovel motor power

1,5 kw

Vacuum pump motor power / capacity

0,75 kw / 21 m³/h

Shovels speed

30 r.p.m.

Container capacity

150 liters

Weight

390 kg
