เครื่องผสม ยี่ห้อ Castellvall รุ่น AM50-150

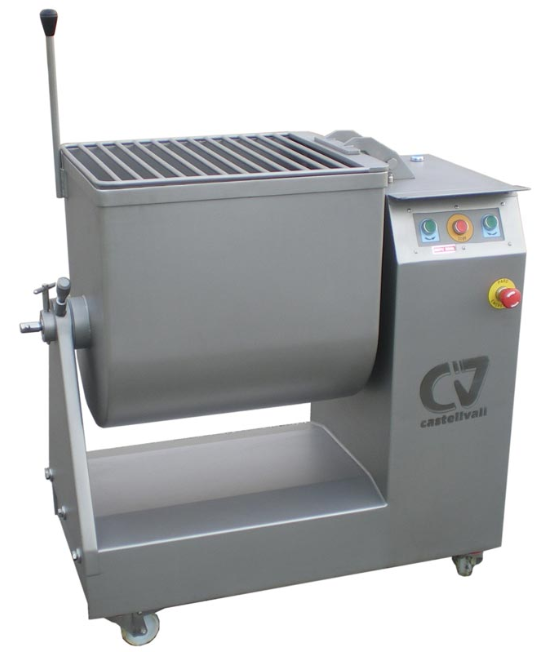

Vacuum kneader-mixer (AM-50-100-150)

• Robust construction made of stainless steel AISI-304.
• Machine constructed according to the European Directive 2006/42/CE.
• Central “T” arm paddle with double turn sense, suitable for knead all kind of products and blend perfectly the ingredients.
• Suitable to massage bringing out the breaker arms of the bowl.
• Suitable to process until 70% of its capacity in liters (depending on the kind of product).
• Geared motor transmission.
• Silent and without maintenance.
• Designed to be able to bring out the arm for easy cleaning.
• Tilting container with a lock system for working, unloading and cleaning positions.
• Stainless steel cap fitted with double safety system.



Technical details

	AM-50	AM-100	AM-150
Dimensions (AxBxH) (mm)	690x375x375	957x445x948	1070x490x1098
Shovel speed	30 r.p.m	30 r.p.m	30 r.p.m
Container capacity	50 liters	100 liters	150 liters
Shovel Motor power	0,37 kw	0,75 kw	1,5 kw
Weight	80 kg	110 kg	175 kg
