ระบบรถลำเลียงอัตโนมัติ

ระบบรถลำเลียงขนส่งอัตโนมัติ และระบบรถ Forklift นำทางและทำงานอัตโนมัติ จากผู้ผลิตโดยตรง Brand "IPlus MOBOT"

ดูทั้งหมด

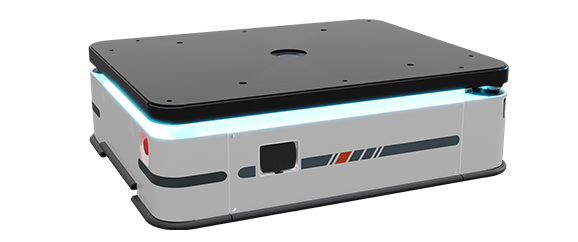

EMMA400L: automated mobile robots,amr automated mobile robot,mobile industrial robot

Basic Parameters

Dimension (L*W*H) 841*540*286mm
Weight 175kg
Differential Drive

Sensor

Single Laser
Bottom Camera
Optional Top Camera

Battery

LFP 48V 31.5Ah
Charging Time 2h
Operating Time ≥8h

Performance

Maximum Payload 400kg
Operation precision ±2mm/0.5°
Aisle width ≥700mm



Position Accuracy ±10mm/1°
Detect Distance 30m



Max Speed 1.2m/s
Laser FOV 210°

Safety System

Laser Obstacle Avoidance
Laser Obstacle Stoppage



Sound And Light Alarm
Bumper



Depth Camera
Emergency Stop

Artificial Intelligence in Transportation Industry -  Automated Logistics Company

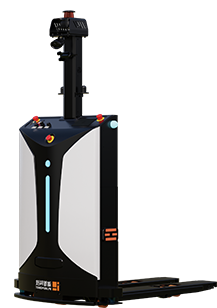

FOLA DN1416,intelligent forklift,robotic forklift,artificial intelligence in transportation industry,artificial intelligence and transportation,logistic and automation for automated logistics company.

Basic

Parameters

 Self weight 680kg

Dimensions (l*w*h)

1617*990*2045mm

Touch screen 7”

 Battery Lithium-ion 24v180Ah
Runtime >8H
Charge time 2.5H

Safety

System

Laser obstacle avoidance +

sound & light  alarm + safety

edge +deepvisual obstacle + emergency stop
Performance

Repeatability ±10mm/1°

Max. Site area>1000000m2

Still tolerance 10mm



No-load speed 1.5m/s

Full load speed1.3m/s

Full load slope-climbing ability 5%

No-load slope-climbing ability 8%



No-load speed 1.5m/s

Full load speed1.3m/s

Full load slope-climbing ability 5%

No-load slope-climbing ability 8%
