ไลน์จัดเลียงสินค้าลงพาเลทอัตโนมัติ

ไลน์สำหรับลำเลียงสินค้าลงจากพาเลทอัตโนมัติ เทคโนโลยีจากประเทศอิตาลี Brand "Clevertech"

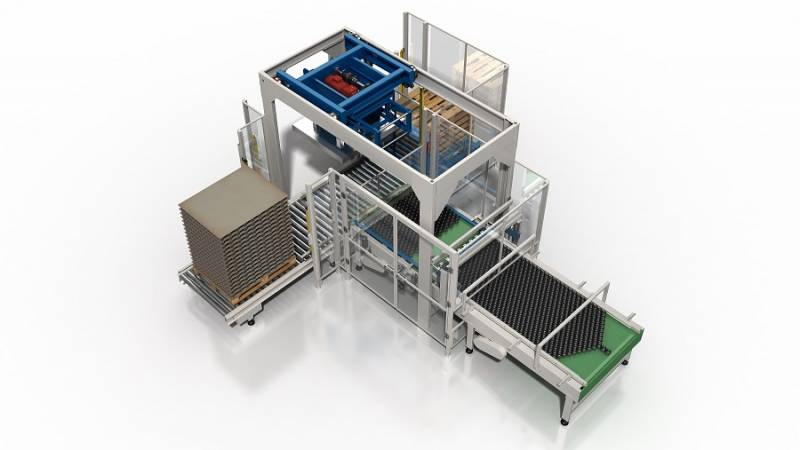

HIGH LEVEL INFEED PALLETIZER WITH MOBILE PALLET

The AC 520 ARROW series is composed of automatic palletizers with mobile pallet, 90° layer transfer system and high level infeed conveyors. The system can be supplied with single (HS 1), double (HS 2) or triple infeed (HS 3). The layer forming device can be fitted with single (HS), or double pusher (HSD), with blocks BLOCKS) or with robots (M 1, M 2). This machine type is ideal for automatic palletization of cases and bundles at high speeds. The system automatically regulates the machine for different product sizes.

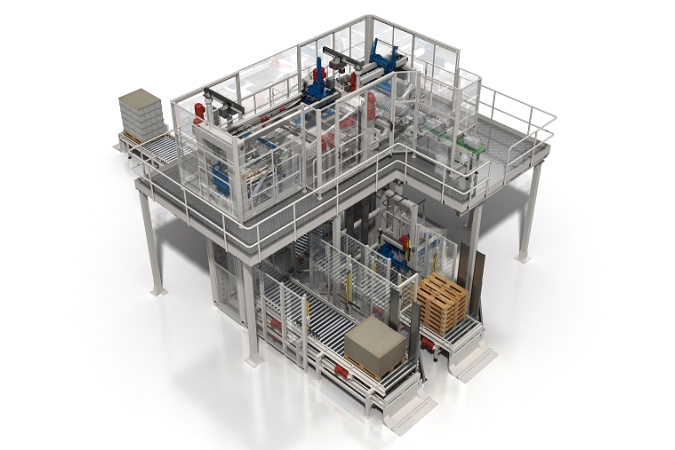

PALLETIZER WITH PANTOGRAPH

The AP EC 20 PANTOGRAPH series of palletizers is composed of automatic palletizers with mobile heads. The product is picked by the magnetic head (PM), or vacuum head (PV). The picking head movement is achieved using a horizontal trolley transfer system. A pantograph system lifts the product. The magnetic head is equipped with photocells to detect the picking layer level during operation. The Pantograph series can be integrated with automatic layer pad and top frame picking devices to increase the degree of automation during the palletization process, thus reducing downtime.
