เครื่องซีลฝาและถาด ยี่ห้อ Proseal รุ่น GT2eX Twin

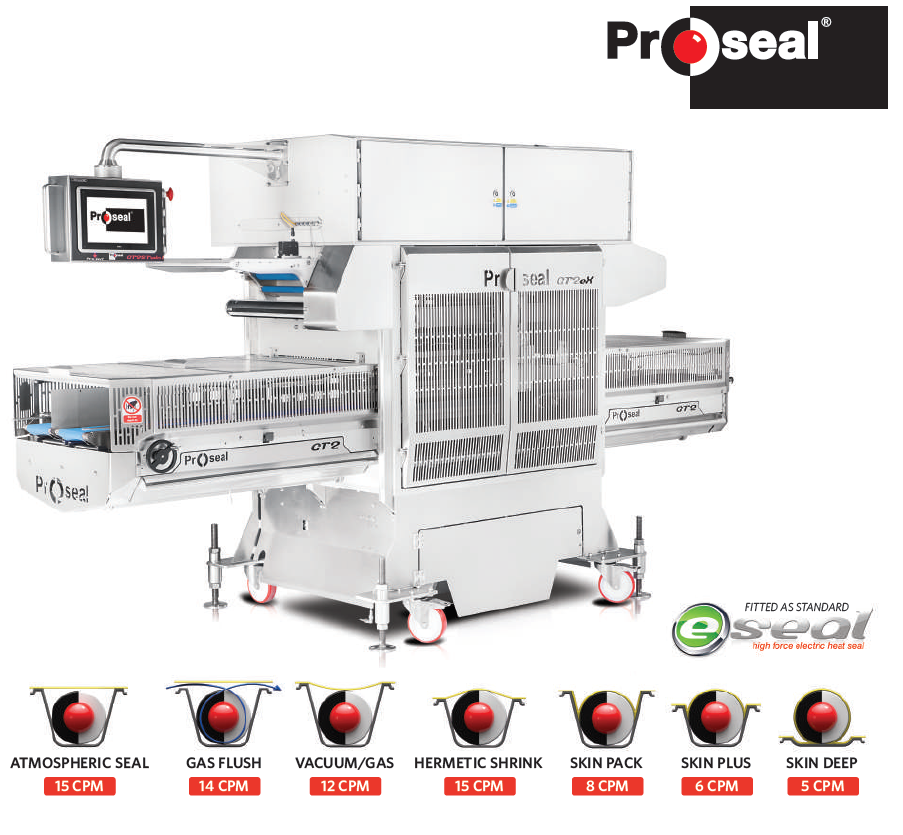

Proseal GT2eX / GT2eX Twin

Specification

Height	2187mm
Standard Length	3807mm
Width	1265mm
Weight	2050kg+ specification dependent
Electrical Supply	400V 3 phase + neutral (fused at 32A)
Transformer Variations	480V 3 phase (fused at 20A)

GT2eX Twin Sealing capacity

No. of trays	Length	Width	Depth	Diameter
Four	200 mm	406 mm	120 mm	200 mm
Six	200 mm	262 mm	120 mm	200 mm
Eight	1900 mm	190 mm	120 mm	190 mm
Ten	147 mm	147 mm	120 mm	147 mm
Twelve	119 mm	119 mm	120 mm	119 mm
