เครื่องซีลฝาและถาด ยี่ห้อ Proseal รุ่น GT2e

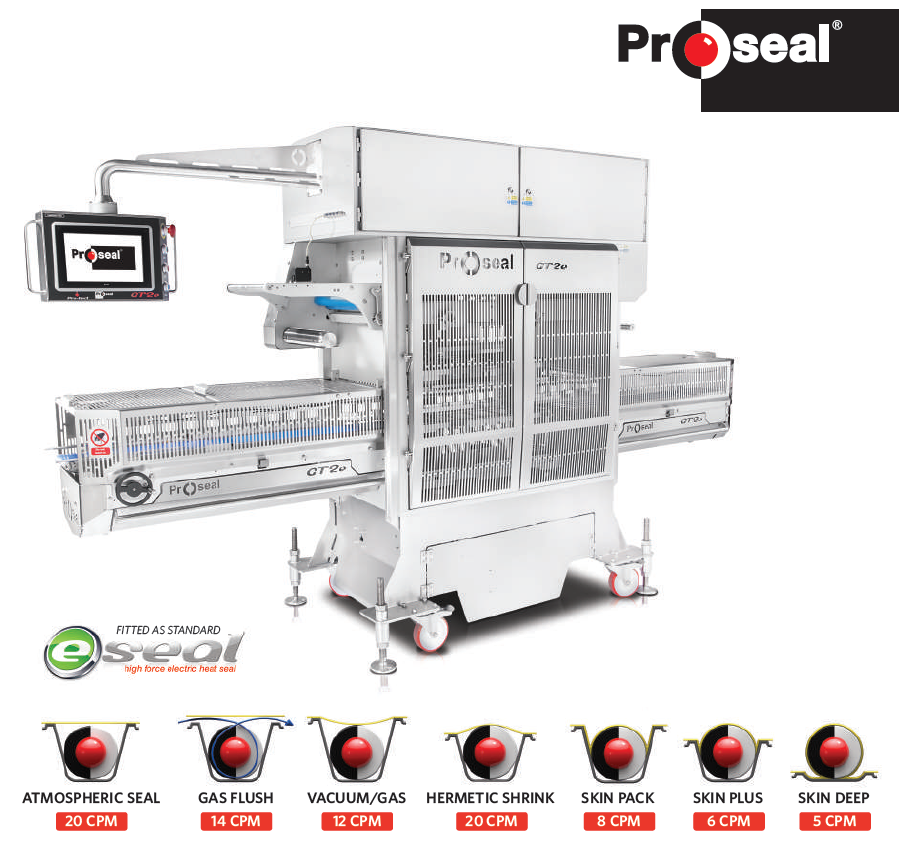

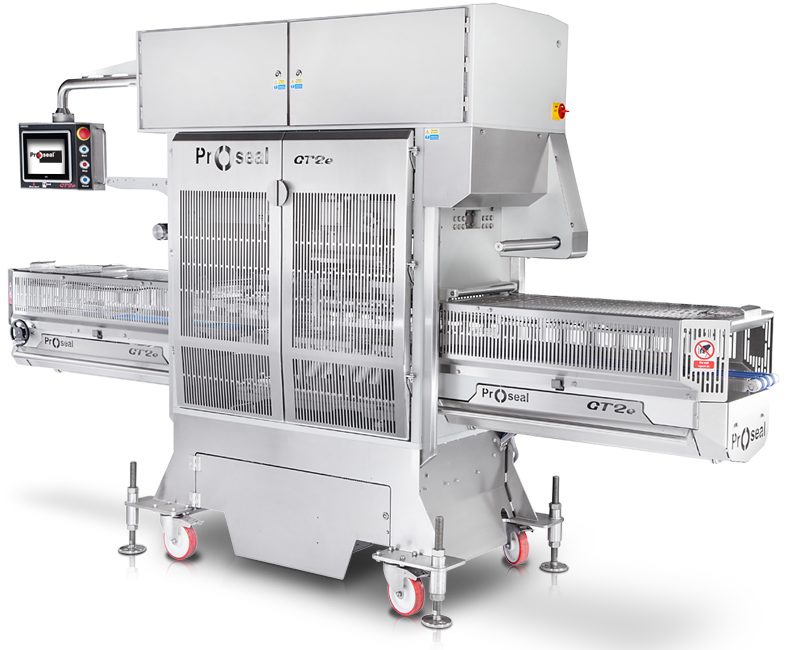

Proseal GT2e

Specifications

Height:	2188 mm
Standard Length:	3658 mm
Width:	976 mm
Weight:	1450 kg
Electrical Supply:	400V 3 phase + neutral (fused at 16A)
Transformer Variations:	480V 3 phase (fused at 20A)

GT2e Sealing capacity

No. of trays	Length	Width	Depth	Diameter
One	300 mm	815 mm	120 mm	270 mm
Two	300 mm	406 mm	120 mm	270 mm
Three	300 mm	262 mm	120 mm	262 mm
Four	300 mm	190 mm	120 mm	190 mm
Five	300 mm	147 mm	120 mm	147 mm
Six	300 mm	118 mm	120 mm	118 mm

GT2e Production Speed

up to 5 cycles per minute Skin Deep

up to 12 cycles per minute Vacuum Gas

up to 14 cycles per minute Gas Flush

up to 20 cycles per minute Standard Seal
