เครื่องซีลฝาและถาด ยี่ห้อ Proseal รุ่น GTRe

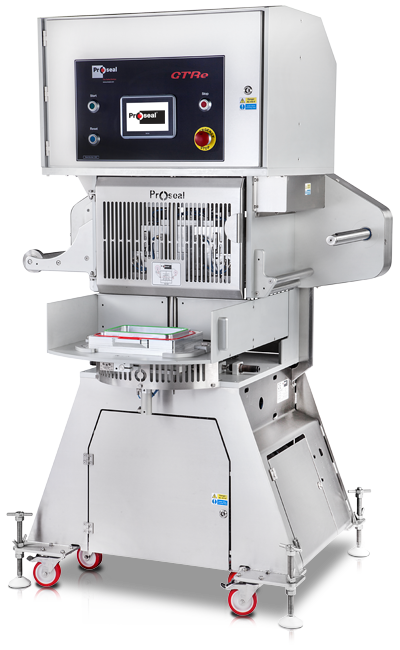

Proseal GTRe

Specifications

Height:	2038 mm
Standard Length:	1296 mm
Width:	1148 mm
Weight:	700 kg
Electrical Supply:	400V 3 phase + neutral (fused at 16A)
Transformer Variations:	480V 3 phase (fused at 20A)

GTRe Sealing capacity

No. of trays	Length	Width	Depth	Diameter
One	270 mm	439 mm	120 mm	270 mm
Two	270 mm	207 mm	120 mm	207 mm
Three	270 mm	104 mm	120 mm	104 mm
Four	270 mm	71 mm	120 mm	71 mm

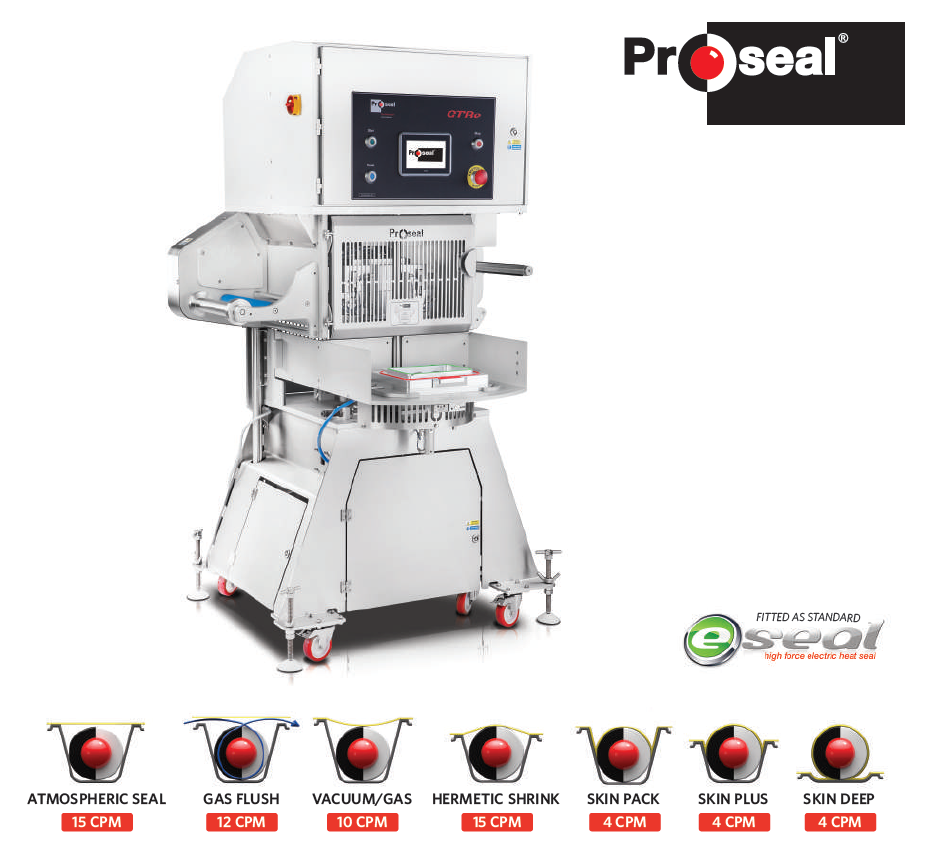

GTRe Production Speed

up to 4 cycles per minute Skin Deep

up to 10 cycles per minute Vacuum Gas

up to 12 cycles per minute Gas Flush

up to 15 cycles per minute Standard Seal
