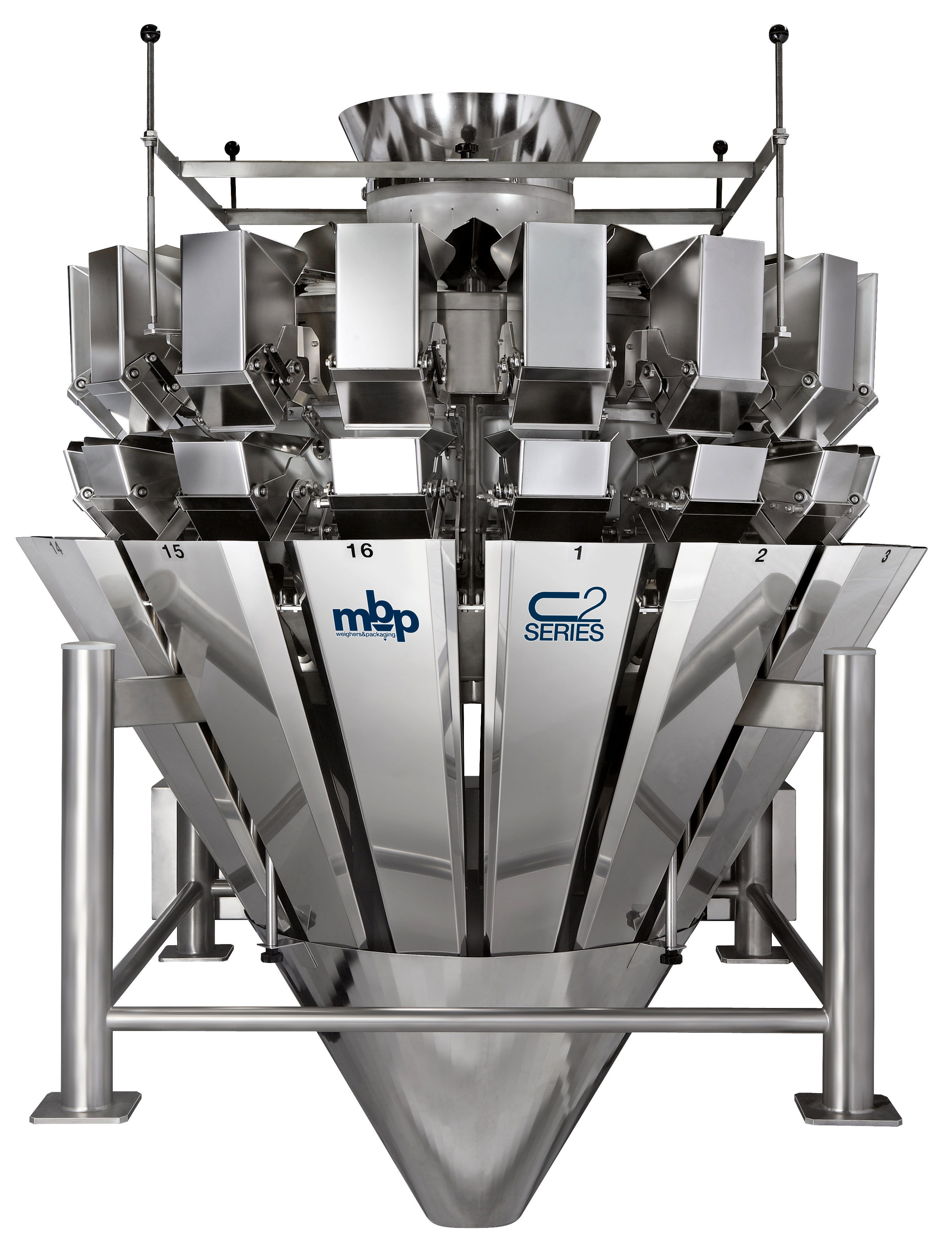

MBP C2 Series

100 per cent made in Italy, the Series C2 represents the very best in high-tech multi-head weighers.

Designed for high-speed, high-precision weighing of various types of granular products, the Series C2 is the fruit of 20 years’ research, development and design work. The outstanding speed/accuracy ratio ensures greater savings and operating safety.

Features

  • Parameter setting reduced to just three sets of data. The rest are entered automatically by means of highly developed real-time functions which represent a considerable improvement on manual entry.

  • Multimedia software based on Windows, can be controlled remotely, wireless.

  • Controlled through industrial PC with extremely powerful processor.

  • Absence of oxidizable components.

  • Absence of aluminium components.

  • No springs on buckets.

  • Removable and interchangeable modules.

  • Powerful, precise vibrating bases.

  • IP66 protection rating; can therefore be washed down.

  • Hardware with powerful, stable and reliable processor (always new generation).

  • CAN-Open type wiring network protected from electromagnetic interference.

Mechanical features

  • AISI 304 tubular frame, designed to facilitate cleaning operations and eliminate hidden areas where bug traps may form. Single AISI 304 electronic control panel and IP66 protection rating.

  • Central vibrating cone complete with load cell, which enables product to be supplied proportionately and not on an “on-off” basis.

  • The proportional system ensures there are minimal variations in the quantity of product on the central cone thereby guaranteeing optimum distribution over the surrounding channels.

  • Particularly powerful vibrating bases. Each base is calibrated according to the customer’s specific product.

  • Vibrating channels with widened base made of AISI 304 to comply with the specific characteristics of the product. Easily detachable and interchangeable.

  • Removable interchangeable weighing heads, complete with direct electrical connector. Contains two stepper motors for opening buckets and hardware control system. All heads are lightweight, air and watertight, IP66 rated, resistant to corrosive agents, suitable for contact with food and resist formation of condensation.

  • Particularly compact and precise new generation load cells, which automatically compensate for variations in temperature.

  • Particularly robust pre-portioning and weighing buckets made of AISI 304 stainless steel with opening/closing controlled by step motors. Opening/closing speed and acceleration/deceleration ramps can be programmed.
