เครื่องบรรจุสินค้าแบบห่อ

Pearl

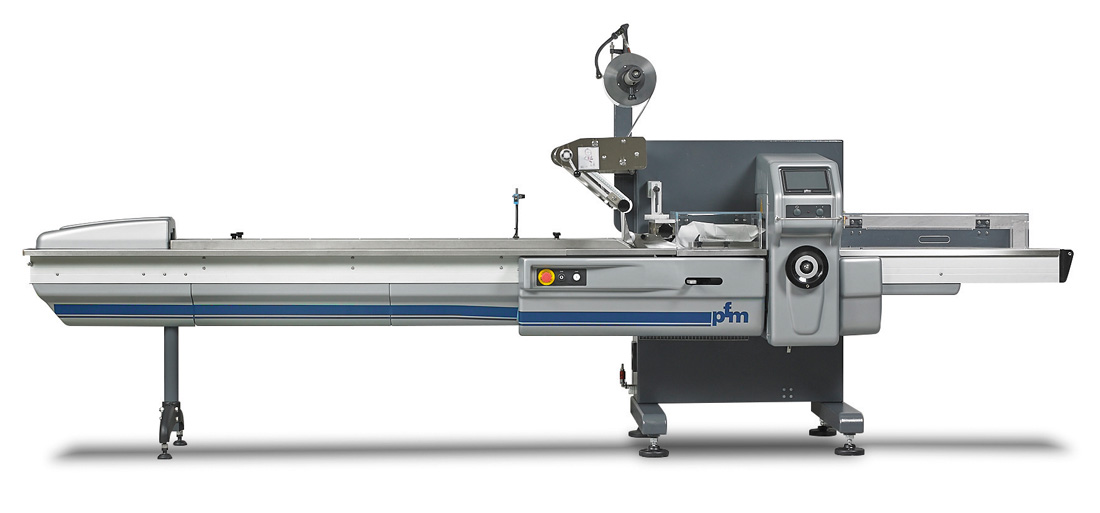

Full servo horizontal pillow-pack wrapper to obtain pillow-pack style packs from a flat reel of heat/cold sealable wrapping material. Sturdy construction with a carbon steel fabricated frame, compact design, cutting edge hardware, reliable and operator friendly control software are the results achieved in this project, expression of experience achieved in many years of manufacturing of flowpack machines and automated lines. A high quality innovative machine.

Packaged products

Products from the food, cosmetic, pharmaceutical, graphic and non food sectors.

Features

  • Full servo operated wrapper with axis motion controller and brushless servomotors. To drive: infeed conveyor, fin seal rollers, sealing crimpers.

  • No mechanical drives drive motors are connected directly to the various assemblies. The electrical panel is housed inside the machine frame and protected from the external environment.

  • Cantilevered Construction manufactured with modular pre-assembled units designed to be easily accessible and replaced. The front of the machine is free from any obstruction. Elegant and rational design, simple yet sturdy construction.

  • Compact design, easy cleaning: thanks to the cantilevered construction and the use of polymer moulded
    components with graceful radiuses there are no dust traps. All guards can be easily removed.

  • Ergonomic design: HMI and start/stop buttons have been ergonomically situated to facilitate accessibility.

  • High speed and versatility: up-to 120 cycles/min. and capable of wrapping endless different products in the food and non-food sectors.

  • Fin seal assembly including three sets of rollers: film pulling, film sealing complete with automatic opening at machine stop and fin seal fold over
