เครื่องสไลด์ ยี่ห้อ Castellvall รุ่น Filet 650

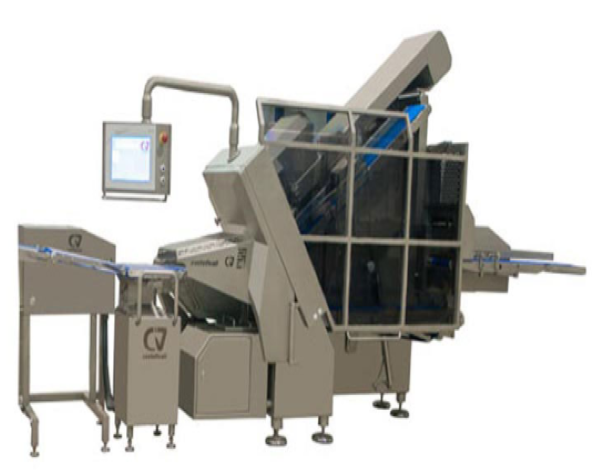

Slicer (Filet-650)

  • Heavy duty construction made of AISI-304 stainless steel.
  • Machine made according to the European Directive 2006/42/CE.
  • The CASTELLVALL slicer is ideal for cutting and stacking cured, cooked and raw meats as well as cheese.

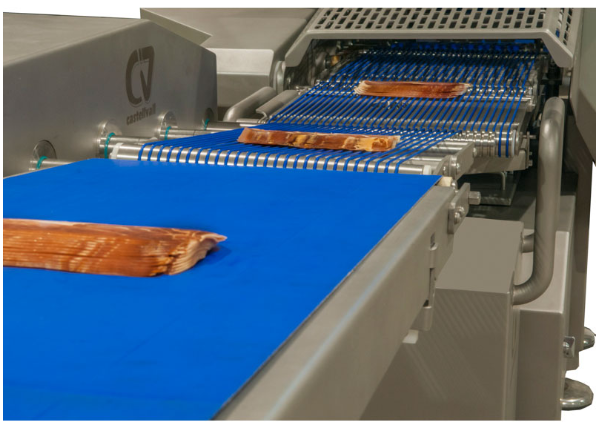

  • Portioner conveyor-belt of 250mm length, separator conveyor-belt of 500mm length with automatic vertical tilt up to 70mm high.
  • Automatic and pneumatic clamp grip of product with product sensor.
  • Vertical and lateral pneumatic pusher-plates with pressure adjustable from the control panel.
  • Product presentation: stepped, stacked, stepped-stack, individual slices, “shaved-meat”, oval shapes, one row beside another, different programmable figures, etc. The number of slices in each group may be varied according to requirements, as well as the length of the portions and the separation between portions.
  • Cutting system, both circular and orbital rotation, with independent motors and independent speed control through the control panel to achieve a precise and parallel cutting.
  • Easy adjustment of all settings using the touch sensitive screen of 15″ on the control panel.
  • Equipped with automatic system of rear loading, with a high performance for products up to 1200mm. length
  • Automatic removal of residual pieces final product.
  • Detection and auto correction of incomplete packets.

Technical details



Filet-650

Dimensions (mm)

6009x1211x2492

Maximum length of the product to be cut

1.200 mm

Maximum cross section cut product

250 x 1500 mm (amplada x altura)

Slice thickness

Adjustable from 0,50 to 100 mm

Blade diameter

450 mm

Production

Up to 650 cuts/minute

Electric power

9 kw to 12 kw

Air pressure

6 bar

Weight

1200kg to 2200kg
