เครื่องสไลด์ ยี่ห้อ Castellvall รุ่น Filet 611

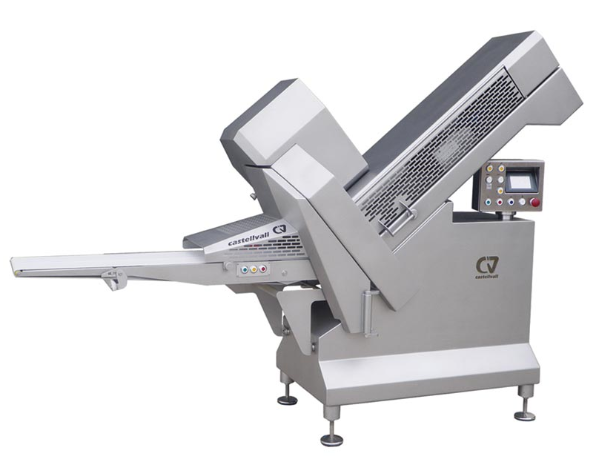

Slicer (Filet-611)

• Heavy duty construction made of AISI-304 stainless steel.
• Machine made according to the European Directive 2006/42/CE.
• The CASTELLVALL slicer is ideal for cutting and stacking cured, cooked and raw meats as well as cheese and vegetables.
• Exit conveyor belt for easier manual placing the slices in the packing machine.
• Product presentation: single thin cut, thick single cut (pieces), stacked, staggered stack, staggered, endless staggered, folding. The number of slices in each group may be varied according to requirements, as well as the length of the portions and the separation between portions. (Possibility of manual adjusting the height of the exit conveyor-belt).
• The product to be cut is attached to a gripper carriage with automatic handling, pneumatic.

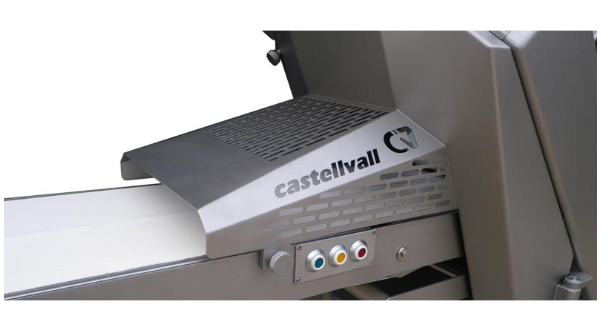

• Buttons in output conveyer belt to pause, reset cycle or to download product of the conveyer belt.
• Easy adjustment of all settings using the touch sensitive screen placed on the control panel with a capacity for 50 recipes.
• Orbital and circular cutting system, with independent motors, and programmable speed to facilitate to cut all kinds of products.

Technical details

	Filet - 611
Dimensions (mm)	3185x855x2190
Maximum length of the product to be cut	1000 mm
Maximum cross section cut product	240x130 mm (width x height)
Slicer thickness	Ajustable from 0,50 to 50 mm
Blade diameter	420 mm
Production	Up to 600 cuts/minute
Electric power	6 kw
Weight	680 kg
