เครื่องผสม ยี่ห้อ Castellvall รุ่น AVT50

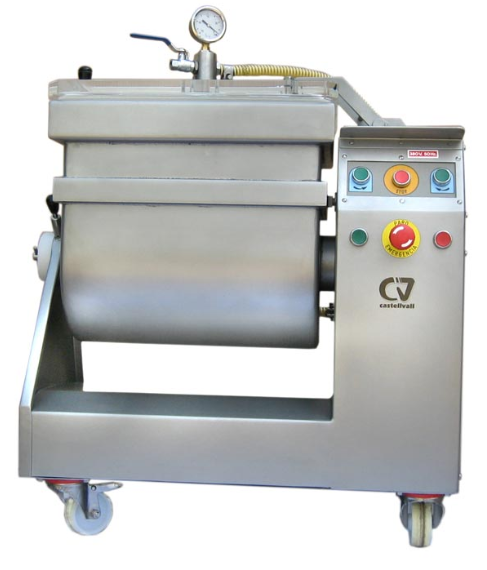

KNEADER MIXER AVT 50

  • Model very used in laboratories of large sausages plants and small deli meats, that wish to develop quality cured products.
  • Robust construction made of stainless steel AISI-304.
  • Machine constructed according to the European Directive 2006/42/CE.
  • Central “T” shovel arm with forward and reverse rotatio, suitable to kneed all kind of products, and blend perfectly the ingredients.
  • Suitable to massage removing the breaker arms of the container.
  • Suitable to process until 70% of its capacity in liters (depending on the product).
  • Geared motor transmission.
  • Silent operation and no maintenance required.
  • Designed to be able to bring out the arm for easy cleaning; with locking system for working positions, unloading and cleaning.

Option

  • Cryogenic mechanism (cold incorporation)



Technical details



AVT-50

Dimensions (AxBxH) (mm)

745x575x975

Shovel motor power

0,37 kw

Vacuum pump motor power / capacity

0,30 kw / 10 m³/h

Shovels speed

30 r.p.m.

Container capacity

50 liters

Weight

165 kg
